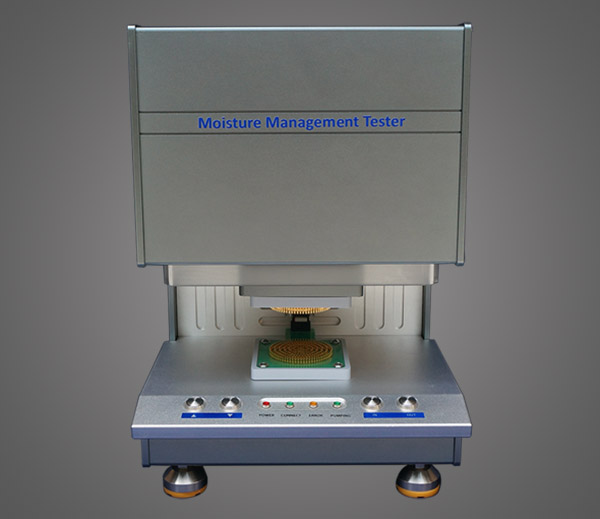

EY60 Moisture Management Tester




Product Descript Download ducument quotation
Fabric liquid moisture transport properties in multi-dimensions, called moisture management properties influence the human perception of moisture sensations significantly. Some standards and test methods can be employed to evaluate the fabric’s simple absorbency and wicking properties, and the liquid strike-through time of nonwovens also can be tested according to ISO 9073-8. However, the existing standards are unable to measure the behavior of liquid transfer of the clothing materials dynamically.
The Moisture Management Tester (MMTester) is an equipment to measure the dynamic liquid transport properties of textiles such as knitted and woven fabrics in three dimensions:
1. Absorption Rate - Moisture absorbing time of the fabric’s inner and outer surfaces.
2. One-way Transportation Capability – Liquid moisture one-way transfer from fabric’s inner surface to outer surface
3. Spreading/Drying Rate – Speed of liquid moisture spreading on fabric’s inner and outer surfaces
Technical Specificationstop
Dimension : (H) 240mm, (L) 320mm, (W) 200mm
Net Weight: 8 kg
Interface : WiFi
Power Supply: 110V~230V 50Hz/60Hz 0.5 A
Operation Temp & RH: 18°C to 40°C, 20% to 80% (non-condensing)
Pump On Time: 20 sec
Test Solution: Conductivity - 16 mS± 0.2 mS
Upper Weight: 4.65N±0.05
Professional Technologytop
  • A. Shell all-metal structure, external interference signal has good anti-interference ability.
  • B. Improving the structure of testing sensor ,manual to automatic , the upper sensor, driven by a stepper motor built-in pressure testing equipment, to the fixed pressure automatically stop, can automatically return after the test .
  • C. Improving the structure of the pump water ,pump water uniformly stable, and can adjust pump water flow by software,Water pump can reverse pumping, make the liquid left in the pipe return to storage tank, prevent brine crystallization plugging silicone tube
Test standardtop
AATCC 195 , GB/T 21655.2
Test principletop
MMTester consists of upper and lower concentric moisture sensors. The specimen is held flat under fixed pressure between the sensors while standard test solution is introduced on to the top surface of the fabric.Electrical resistance changes between the upper and lower sensors are then recorded dynamically on computer.
MMTester permits the measurement of the following indexes:
- Wetting Time Top/Bottom (WTT/WTB)
- Absorption Rate Top/Bottom (TAR/BAR)
- Maximum Wetted Radius Top/Bottom (MWRT/MWRB)
- Spreading Speed Top/Bottom (TSS/BSS)
- Accumulative One-Way Transport Capacity (R)
- Overall Moisture Management Capacity (OMMC)
Applicationtop
The sportswear fabric testing, underwear apparel fabrics testing and research
Configurationtop
Standard configuration:
1. Mainbody
2. MMTester system5.0 analysis software.
3. Conductivity Meter
