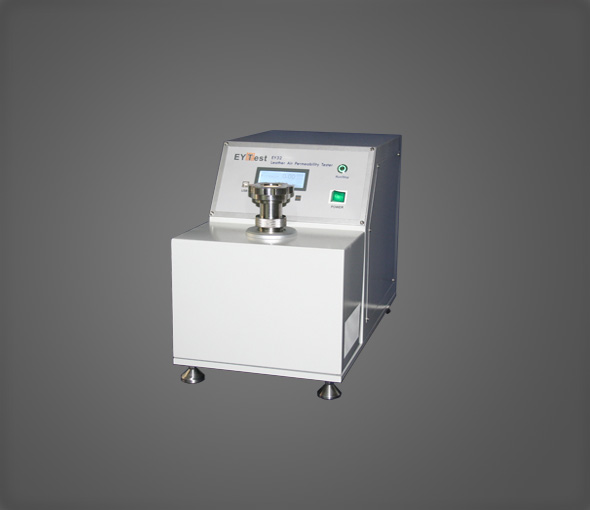

EY32 Leather Air Permeability Tester




Technical Specificationsquotation
  • Measuring range: 0 ~ 2400 mL / (c㎡.H)
  • Measuring accuracy: <1%
  • Test time: 15 seconds on average
  • Test areas: 10c ㎡
  • Specimen diameter: 5.5cm
  • Pressure: 10Pa ~ 2500Pa
  • Power: AC 100-240V，50/60Hz
  • PC communication: USB port connection
  • Dimensions: L520 x W280 x H300mm
  • Weight: 10kg
  • Warranty: 24 Months
Professional Technologytop
    1.Precision flow sensor, a wide range of Air permeability measurements.
    2.Quick test, traditional testing methods require more than 30 minutes, EY32 only takes 15 seconds
    to complete the test.
    3.USB port connection,installed the sample , press test key, you can quickly get the result, the
    instrument with a USB interface, send the result to Pc to analysis of test results, print the
    standard test report and can also save the test report to EXCEL format.
Test standardtop
    QB/T 2799，GB/T_11603，GB/T4689.22
Test principletop
    Exert a certain pressure on the air in a certain area of ​​the leather or textile sample permeability through the gas flow is different, you can test the permeability of the sample through the flow sensor.
Applicationtop
    Leather acquisition of inspection, the leather quality inspection.
Configurationtop
Standard configuration: Mainbody
Optional accessories: LABTest analysis software.
