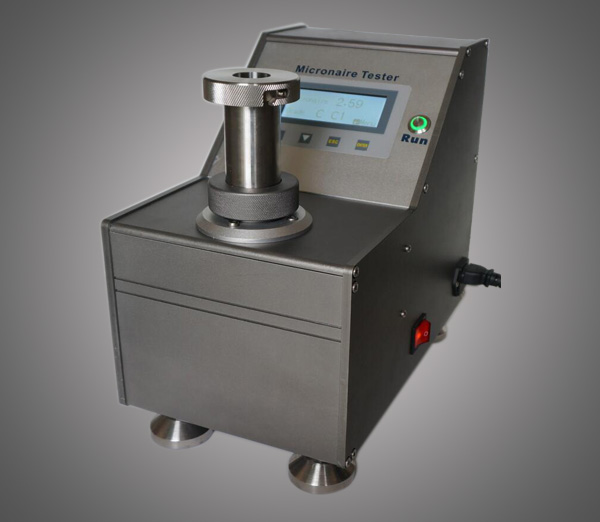

EY30 Micronaire Tester-EYTEST LIMITED(EYtest.com)

Technical Specifications: Measuring range: 2.0 to 7.5 micronaire
Measuring accuracy: 0.03 micronaire (standard lab environment)
Test time: 15 seconds on average
Sample mass: 5 ± 0.1g
Power requirements: AC 100-240V，50/60Hz
PC communication: USB port connection
Dimensions: L520 x W280 x H300mm

Professional Technology:    Precision, a large number of process flow sensor, a wide range of micronaire measurements,
reaching 2.7 to 7.0, almost can test the market so Cotton, which is the world on the use of air
measured Make Long the widest range of instruments
   One key test, the sample is installed, simply press a key, you can quickly test the instrument
with a USB interface, can use the included software, statistics, analysis of test results, print the
standard test report can also save the test report to EXCEL format.
   Calibration is easy, fast calibration, precision can reach 0.1 Make Long after calibration, instead
of the standard laboratory environment.

Test principle: Airflow method of testing cotton micronaire and cotton maturity, exert a certain pressure of air in the cotton sample, because of the fineness of the cotton, through the gas flow is different, by measuring
the gas flowalso associated with the micronaire test.

Application: Cotton cultivation, the acquisition of cotton, cotton spinning cotton inspection.

Configuration: Standard configuration: host, a power line.
The Optional accessories: 1.LABTest, analysis software, 2 GB standard cotton.
