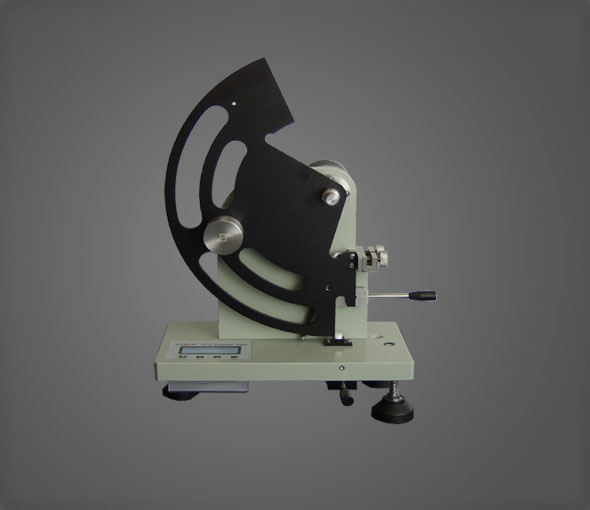

EY10 Elmendorf Tester




Technical Specificationsquotation
Standard Pendulum Weights (A-D): 8N,16N,32N,64N
Optional Pendulum Weight (E): 128N
Measuring accuracy: 1% of Pendulum range
Readability: 1mN
Calibration weights: 50% of each Pendulum range
Units of Measurement: N, cN, mN, kgf, gf, lbf, ozf
Number of Specimens (Plies):1 to 16
Maximum Specimen Thickness: 8mm
clamps clearance:2.5-3.5mm
Cut Length:15 - 20mm
Blade: Titanium nitride coated
Dimensions: 360mm×250mm×360mm(W×D×H)
Weight: 30Kg
Power: DC5V 1W
Warranty: 24 Months
Professional Technologytop
   1.Automatic pendulum weight detection, automatic zeroing and visible and audible indicators
   2.Hi-resolution digital encoder
   3.Low-power design,USB interface power supply。
   4 Design of the high range,Select E ​​the pendulum can test to 128N
   5.Two clamps clearance 2.5 to 3.5 is continuously adjustable, adjustable blade position to meet a
variety of Testing standards.
   6.LED backlight, digital adjust lighting brightness.
   7.User friendly software, statistical analysis of results and PC Software Package available
Test standardtop
Textile
ASTM D 1424,DIN 53862,EN ISO 13937-1,ISO 4674-2,ISO 9290,GBT 3917.1,M&S P29,NEXT 17,NF G07-149
Plastics
ASTM D 1922,GB/T 11999,ISO 6383-2,JIS K 7128-2,NF T54 141
Nonwovens
ASTM D 5734,WSP 100.1
Paper
APPITA P 400,ASTM D 689,BS 4468,CSA D9,DIN 53128,EN 21974,GB/T 455,ISO 1974,JIS P 8116,PAPTAC D9 SCAN P11,SNV 198482,TAPPI T414 UNI 6444
Test principletop
  Lift the pendulum up to a certain height to give it an initial potential energy. The pendulum tears the
specimen while swinging down. The electronic test system  calculates the decreased energy caused by tearing to obtain the required force for tearing.
Applicationtop
Textiles,Plastic film and aluminum plastic composite films,Paper and paperboard.
Configurationtop
Standard configuration: Mainbody,Standard Pendulum Weights (A-D) and Calibration weights, LABTest PC software
Optional accessories: EY10-E Pendulum Weight E and Calibration weight
